Hydraulics

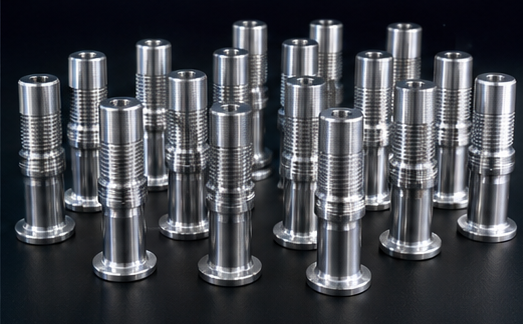

Hydraulic end fittings

Flanged, serrated-tail fittings turned complete and gauged batch-wise.

CNC turning Steel bar

View detail →

Turned

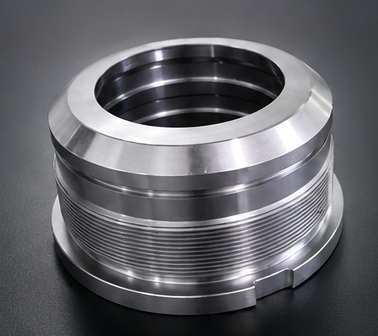

Threaded gland collar

Bore and external thread cut in one setting to hold concentricity.

CNC turning Fine thread

View detail →

Housing

Extruded aluminium housing

Extrusion cut to length, then apertured and tapped on the VMC.

VMC milling Aluminium

View detail →

Turned

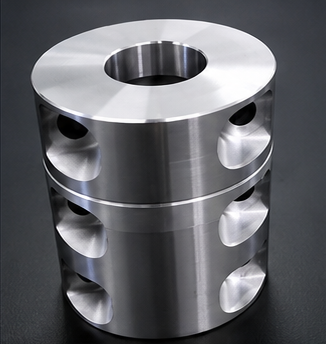

Slotted cylinder body

Turned, then indexed on the VMC for a scallop slot pattern.

Turning + milling Indexed

View detail →

Housing

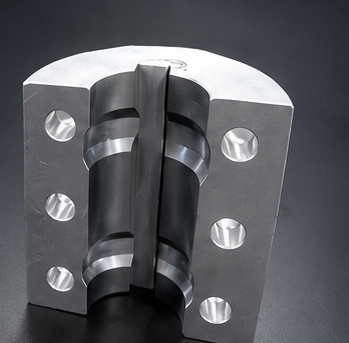

Twin-bore clamp block

Split clamp body machined as a matched, marked pair.

VMC milling Matched set

View detail →

Turned

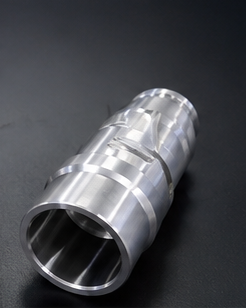

Stepped bore sleeve

Deep-bored on the Pinacho, the machine for larger, longer work.

CNC turning 305 mm chuck

View detail →

Housing

Pillow block housing

Bearing seat bored after the mounting face, from the true datum.

VMC milling Bored seat

View detail →

Housing

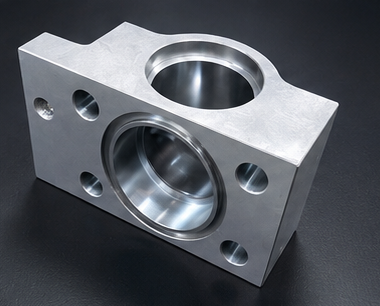

Flanged bearing block

Machined from solid, two faces, one fixture change.

VMC milling From solid

View detail →

Manifolds

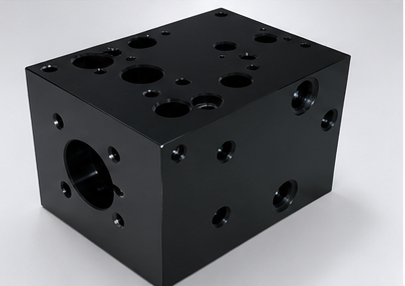

Anodised manifold block

Cross-drilled galleries and multi-face ports, checked in-process.

VMC milling Anodised

View detail →

Hydraulics

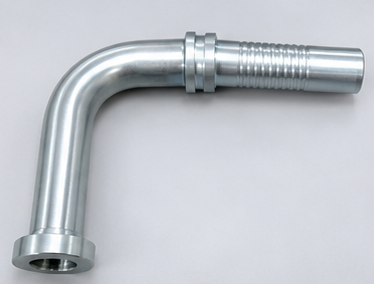

90° hose elbow fitting

Turned, formed and joined, then checked at both ends.

Turning Light fabrication

View detail →

Tooling

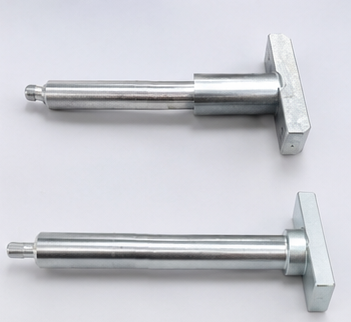

T-handle crimping tool rods

Draw rods matched to sets already running on your machine.

Turning Fabrication

View detail →
